Harken Micro Carbo Cam Cleat 471

Description
About the Harken Micro Carbo Cam Cleat 471

Part of the Carbo Harken range, the Micro Carbo Cam is ideal for situations where weight is an issue (e.g. dinghy racing). Like all Harken Cam Cleats, the design is tweaked so that you can push the line down into the cleat rather than have to pull it through. This means you can keep maximum load as you cleat. The teeth are rounded to reduce wear and tear on the line. The lightweight fibre reinforced Carbo Cams are UV protected for longevity. The Carbo Cam Cleat is also suitable for locations where adjustments are less frequent but you still require high levels of control and instant release. Fairleads are also available for this product.

Specification:

  • Height 22mm
  • Length 48mm
  • Width 24mm
  • Weight 19g
  • Minimum line diameter 3mm
  • Maximum line diameter 6mm
  • Fastener spacing 27mm
  • Fastener 4 mm
  • Maximum working load 68KG
  • Breaking Load 136KG
  • Pawls Plastic carbon-matrix
Skip product gallery

Harken Micro Carbo Cam

Harken Micro Wedge Kit 297
Harken Micro Wedge Kit 297
Wedge kits and risers are available to improve the angle of your cams. Underdeck shims are included with angled risers and wedges for easy…

Regular price: £3.92
Harken Standard Wedge Kit 145
Harken Standard Wedge Kit 145
Wedge kits and risers are available to improve the angle of your cams. Underdeck shims are included with angled risers and wedges for easy…

Regular price: £5.11
Harken Micro 15° Angled Riser 294
Harken Micro 15° Angled Riser 294
Wedge kits and risers are available to improve the angle of your cams. Underdeck shims are included with angled risers and wedges for easy…

Regular price: £6.38
Harken Standard 15° Angled Riser 296
Harken Standard 15° Angled Riser 296
Wedge kits and risers are available to improve the angle of your cams. Underdeck shims are included with angled risers and wedges for easy…

Regular price: £9.86
Harken Micro Flat Riser 293
Harken Micro Flat Riser 293
Wedge kits and risers are available to improve the angle of your cams. Underdeck shims are included with angled risers and wedges for easy…

Regular price: £4.06
Harken Standard Flat Riser 295
Harken Standard Flat Riser 295
Wedge kits and risers are available to improve the angle of your cams. Underdeck shims are included with angled risers and wedges for easy…

Regular price: £7.35
Harken Micro Wire Fairlead 475
Harken Micro Wire Fairlead 475
Wire fairleads maintain a low profile while holding the line close to the cleat.Specification: Length (mm) 48 mm Width (mm) 24 mm Height (mm) 23…

Regular price: £5.78

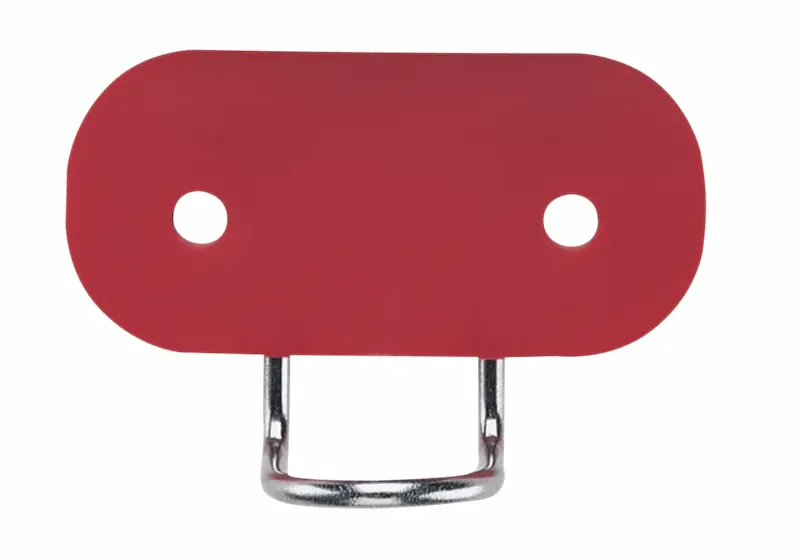

Harken Standard Wire Fairlead 298
