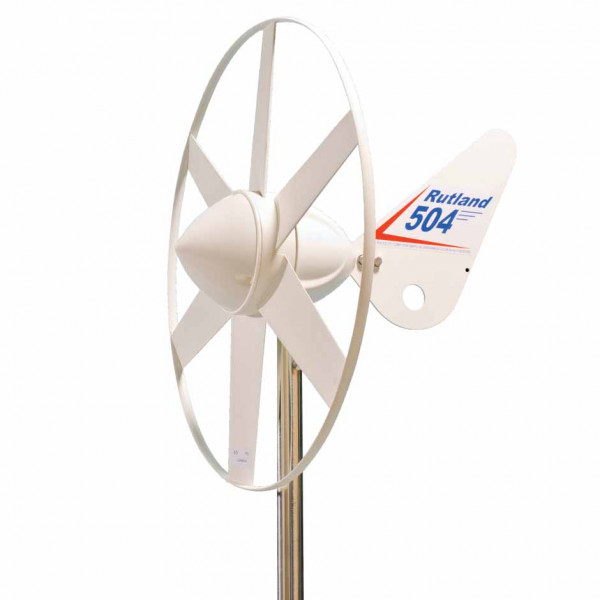

Rutland 504 Wind Generator 12V

The smallest wind turbine and generator from Marlec the Rutland 504 Windcharger is ideal for trickle charging to keep batteries topped up on your boat or yacht. Very lightweight at just 3.5KG and surprisingly small with a turbine diameter of just 510mm the Rutland 504 is easily pole mounted or positioned where required. From cone of the wind generator to tip of the tail the length is 439mm making this a super compact way of keeping your leisure batteries ready and topped up.

Best suited to weekend sailors or low power users the Rutland 504 is recommend for boats up to 10 meters and batteries up 100Ah. The aerodynamic shaping and styling as well as the sharp nose cone help to get power generating even at low wind speeds. It is also a common wind charger for use on caravans and motor homes as well as inland cruisers.

A marine mounting kit is available although the generator is easily mounted with a pole of 37mm external diameter (31mm internal diameter) You will also need a voltage controller, Marlec  recommend the HRSi, HRDX or HRS503.

• 12v output (24v also available)
• Turbine diameter 510mm
• Turning radius 304mm
• Total depth centre of turbine to end of fin 778mm
• Mounting diameter 37mm
• Weight 3.5KG
• Yaw rotation - slipring for 360 degree free rotation
• The generation is low friction, 3 phrase and brushless
• Output guide: 10 knots (5m/s) - 3w (0.2A) : 21 knots (11m/s) - 29w (2.1A): 29 knots (15m/s) - 48w (3.4A)
